USB Storage FHD Medical Endoscope Image Camera Processor With
Recording Function Laparoscopy Arthroscope Camera Syste
DJSXJ-IId
1080P Medical Endoscope Camera includes camera control unit, camera
head and optical coupler.
(Zoom coupler is optional.)
Features
1. Recording function: meet the needs of clinical teaching
2. 5" display screen
3. Delicate endoscope Images, Richer color gamut, FPGA image
processing algorithms.
4. Stronger noise reduction, sharpening, brightness, contrast and
extinction functions.
5. SHADING Fuction: to enhance the vascular, enable doctors to see
clearer
6. The ergonomic design and light weight of camera handle effectively
help reduce the fatigue of doctors during long term operation.
Applications
Widely used in hysteroscopy, laparoscopy, proctoscopy, arthroscopy,
ENT, otolaryngology, urology, gynecology, ophthalmology, plastic
surgery, cystoscopy, prostate surgery hernia repair, appendectomy,
colectomy, etc.
Output Signal
Multi-interface synchronous output
* HDMI, DVI, SDI three full HD synchronous output 1920*1080 (16:9)
* VGA 1280*720 (Although it is 720 output, it is compressed from
full HD to 720, which is actually clearer than 720)
* VEDIO 640*480
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Unit Cell Size | 3.75 umx3.75 um |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Shutter | Auto range 1/50-1/4000 |
| AGC | 0-20dB Adjustable |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Min.Sensitivity | 20LxF1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | SMPTE 424M 3G-SDI, 75Ω |
| Output Signal | HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz ,
1920X1200 60Hz, Video(480P or 480I) |
| Display screen | 5.0 inch, Resolution 800 x 480 |
| Recording function | Support U disk or mobile hard disk for 1080P recording |
| Video storage format | MP4 format for H.264/H.265 ENCODING STORAGE |
| Image processing | Noise reduction algorithm(2D/3D), color density 30 levels(user
adjustable), edge enhancement, contrast adjustment, image
magnification(16 times digital magnification) blood vessel
enhancement, anti-fog function, strong light suppression |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~+40℃ |
| Power Supply | AC100-240V 50/60 HZ |
| Size | Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x
120mm |
| Weight | 4 KG |

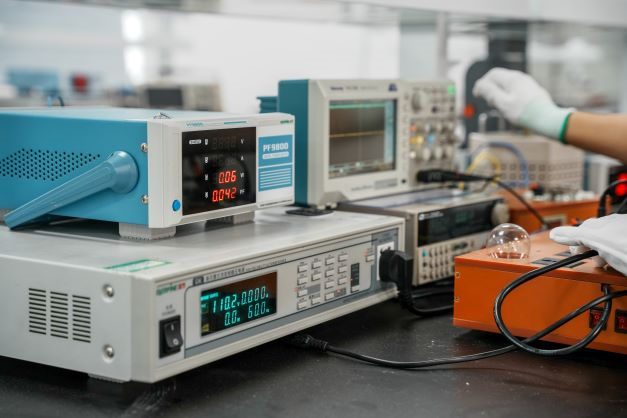

Dajing R&D Center
The "966" EMC 3m Anechoic Chamber, Reliability Lab, Material Lab, Function Lab, Simulation Lab,
Security Lab, HALT Lab and ect. are built to fully guarantee the
quality of Dajing products.
