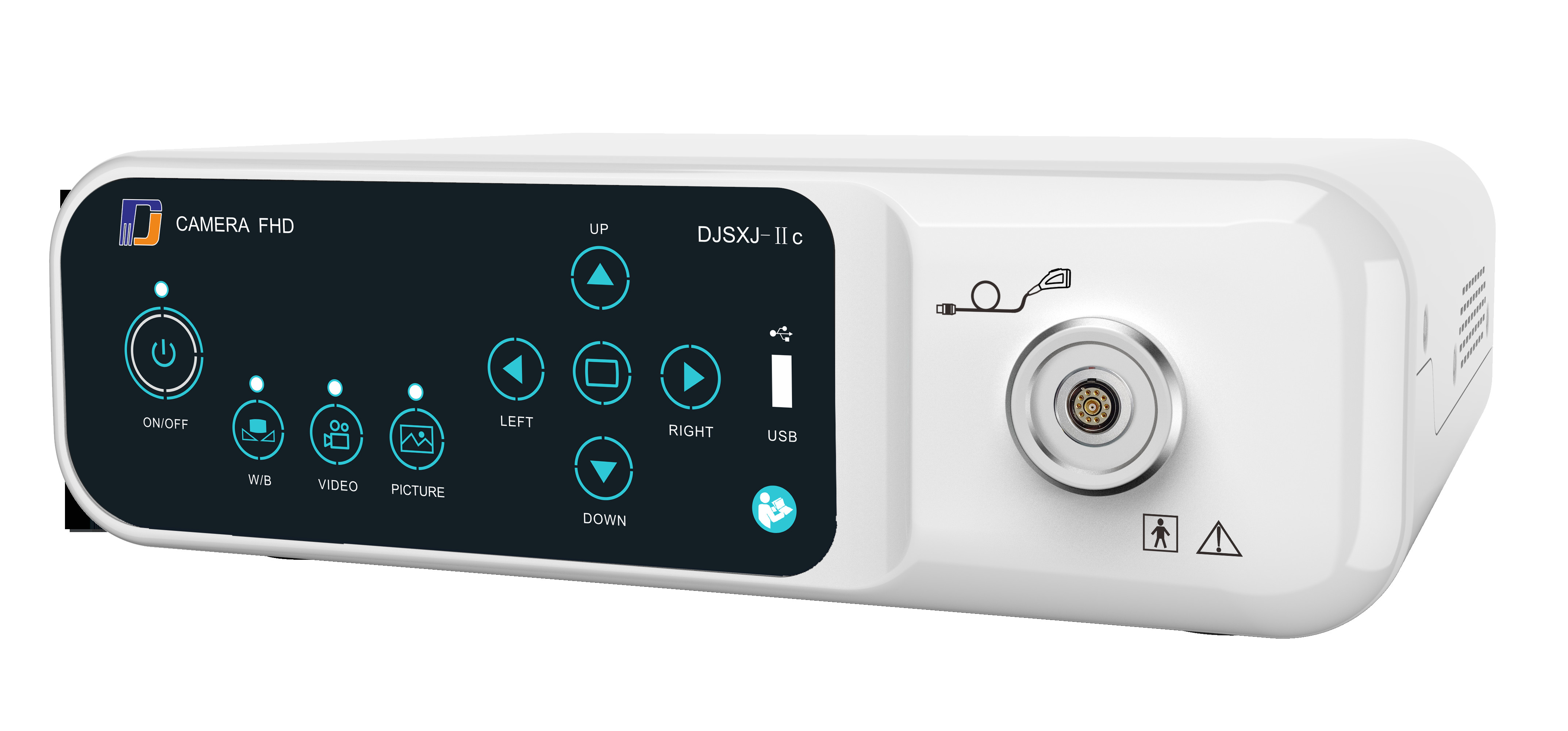

DJSXJ-IIc Full HD Endoscope Camera

1080P Medical Endoscope Camera includes camera control unit, camera head and optical adapter.
(Zoom adapter is optional.)

Our Full HD endoscope camera system, the perfect solution for high-quality surgical imaging. This system features 1920(H) x 1080(V) effective pixels ensuring every surgical procedure is captured in full HD for clear visualization and precision. With surgical definition, you can perform your duties with ease, knowing that you are fully equipped to deliver exceptional quality care to your patients.

Applications

Widely used in hysteroscopy, laparoscopy, proctoscopy, arthroscopy, ENT, otolaryngology, urology, gynecology, ophthalmology, plastic surgery, cystoscopy, prostate surgery hernia repair, appendectomy, colectomy, etc.

Image Sensor	1/1.9'' Sony IMX185 CMOS Sensor
Unit Cell Size	3.75 umx3.75 um
Effective Pixels	1920(H) x 1080(V)
Resolution	1000TVL
Photometry	Average, peak and area photometry
Exposure	Auto/Manual
S/N	>54dB
Image Gamma	0.45, 0.55, 0.65, 0.75
Shutter	Auto range 1/50-1/4000
AGC	0-20dB Adjustable
Lens Mount	C-Mount
Scanning Mode	Progressive
Illumination Ref	3000k-8000k
Min.Sensitivity	20LxF1.4
Waterproof	Camera Head IPX7 waterproof
Transmission	SMPTE 424M 3G-SDI, 75Ω
Output Signal	HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I)
Recording Function	Support U disk or mobile hard disk for 1080P recording
Video Storage Format	MP4 format for H.264/H.265 ENCODING STORAGE
White Balance	Manual
Language	Chinese,English
Handle Button	Picture, Video, White balance
Working Temperature	0℃ ~+40℃
Power Supply	AC100-240V 50/60 HZ
Size	Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x 120mm
Weight	4KG

Dajing Medical is a high-tech company affiliated to Dajing Group, focusing on medical equipment R & D, production, testing and sales service. It is located in B5, Mangrove Science and Technology Innovation Center, Hengshan Science City, Yanfeng District, Hengyang City, Hunan Province with an area of 8,000 square meters, the company's main products: Ultra 4K endoscope camera system, full HD camera system, wireless endoscope camera system, medical cold light source, portable light source, migraine pain relief, pain treatment stickers and other products. Products can be used in ENT, gynecology, urology, orthopedics, general surgery, anorectal, pain and other departments.

Dajing Medical is a medical device manufacturer who own EMC testing Lab. Our company has built "966" electromagnetic compatibility 3-meter anechoic Lab and reliability Lab, material Lab, function Lab, simulation Lab, safety Lab, HALT and other professional Lab. We can provide EMC test, rectification and product certification one-stop service, covering CCC, UL, CE, CB and other domestic and international certification. The company has more than 10 sets of automatic multi-functional SMT machines imported from Japan, as well as advanced equipment such as automatic printing machine, 16 temperature zone reflow soldering, A0I detector, BGA testing and maintenance platform, which provides solid guarantee for the stability of products.

Our products have passed the inspection and registered in China Food and Drug Administration, Our products also got the electrical safety and electromagnetic compatibility test report issued by Rhine Company, and passed the audit of ISO13485. In 2020, Dajing medical was awarded the honorary title of National High-tech Enterprise..

Dajing Medical is relying on a great R & D team, focuses on the development of forward-looking products and technologies and develops leading medical products and technologies for China and the World，and strives to create and continuously improvement, so that more people in the world can obtain better medical care with affordable capabilities.
